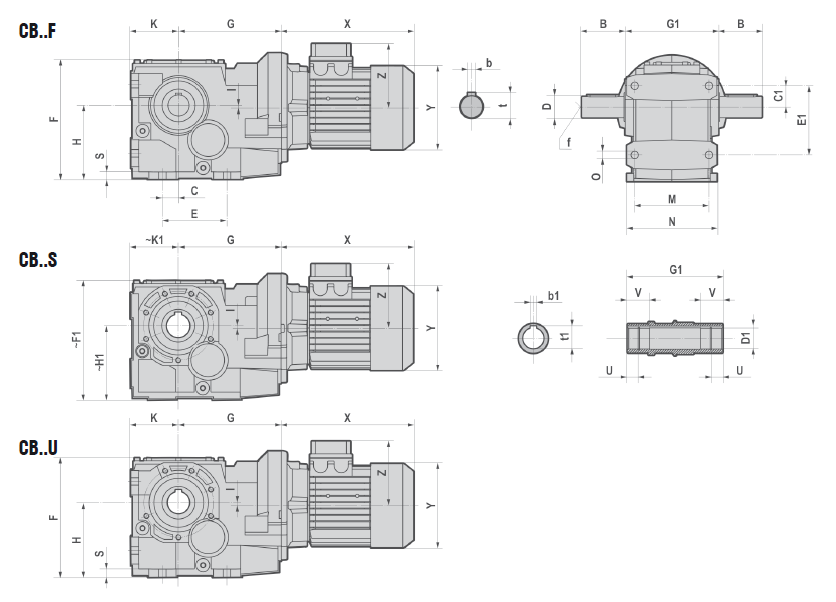

Габаритно-присоединительные размеры коническо-цилиндрических редукторов MOTOVARIO серии B063, B083, B103, B123, B143, B153, B163 |
| |
B..CB.. |
D1 |
b1 |
t1 |
U |
V |
B |
D |
b |
t |
f |
C |
C1 |
E |
E1 |
063 |
35 Н7 |
10 |
38.3 |
12 |
35 |
58 |
35 k6 |
10 |
38 |
М12 |
30 |
39 |
130 |
126 |
(40 Н7) |
(12) |
(43.3) |
083 |
40 Н7 |
12 |
43.3 |
22.25 |
42 |
80 |
40 k6 |
12 |
43 |
М16 |
30 |
40 |
120 |
130 |
(45 Н7) |
(14) |
(47.6*) |
103 |
50 Н7 |
14 |
53.8 |
25 |
50 |
100 |
50 k6 |
14 |
53.5 |
М16 |
40 |
50 |
150 |
160 |
123 |
60 Н7 |
18 |
64.4 |
28 |
70 |
120 |
60 m6 |
18 |
64 |
М20 |
55 |
78 |
180 |
220 |
143 |
70 Н7 |
20 |
74.9 |
27.5 |
75 |
140 |
70 m6 |
20 |
74.5 |
М20 |
75 |
90 |
240 |
280 |
153 |
90 Н7 |
25 |
95.4 |
34 |
90 |
170 |
90 m6 |
25 |
95 |
М20 |
95 |
110 |
280 |
330 |
163 |
100 Н7 |
28 |
106.4 |
40 |
100 |
210 |
110 m6 |
28 |
116 |
М20 |
115 |
155 |
350 |
420 |
B..CB.. |
F |
~F1 |
G |
G1 |
H |
~H1 |
I |
K |
~K1 |
M |
N |
O |
S |
063 |
215 |
219.5 |
174 |
140 |
132 |
137 |
33 |
88 |
92.5 |
104 |
126 |
14 |
12 |
083 |
225 |
225 |
192 |
180 |
140 |
140 |
5 |
90 |
90 |
140 |
170 |
14 |
15 |
103 |
283 |
283 |
213.5 |
210 |
180 |
180 |
25 |
112 |
112 |
165 |
205 |
18 |
18 |
123 |
341 |
342 |
246 |
240 |
212 |
213 |
33.5 |
132 |
133 |
180 |
230 |
22 |
22 |
143 |
414 |
1 |
279 |
300 |
265 |
1 |
34 |
160 |
/ |
240 |
290 |
22 |
22 |
153 |
490 |
1 |
353 |
350 |
315 |
1 |
35 |
200 |
/ |
270 |
330 |
26 |
26 |
163 |
615 |
1 |
426.5 |
445 |
375 |
1 |
47 |
230.5 |
/ |
330 |
400 |
38 |
45 |
|
| |
